Flat back stainless steel school urinal TU101 & TU102
TU101 Flush valve/cistern flat back wall mounted urinal:

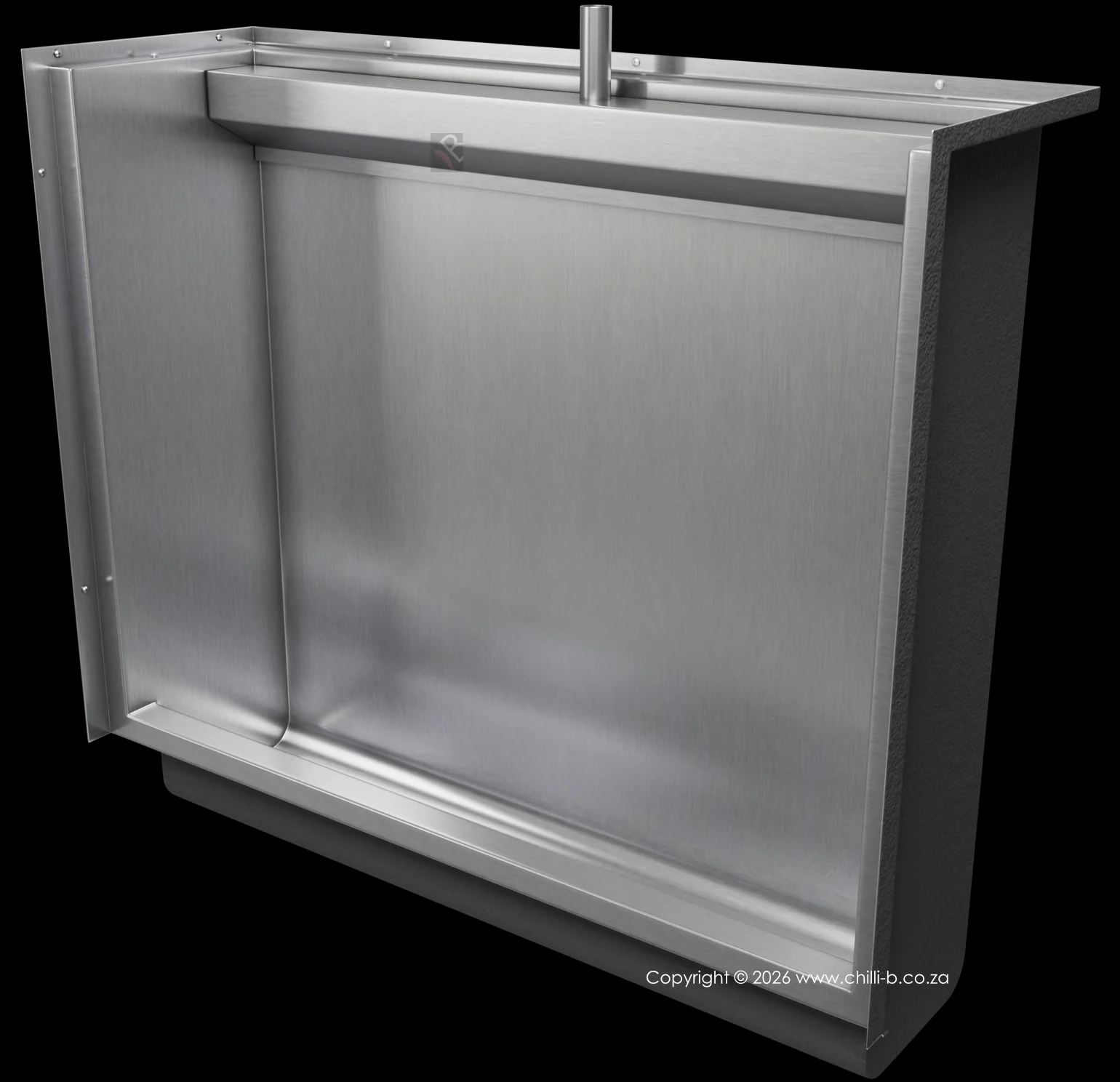

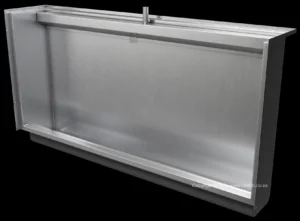

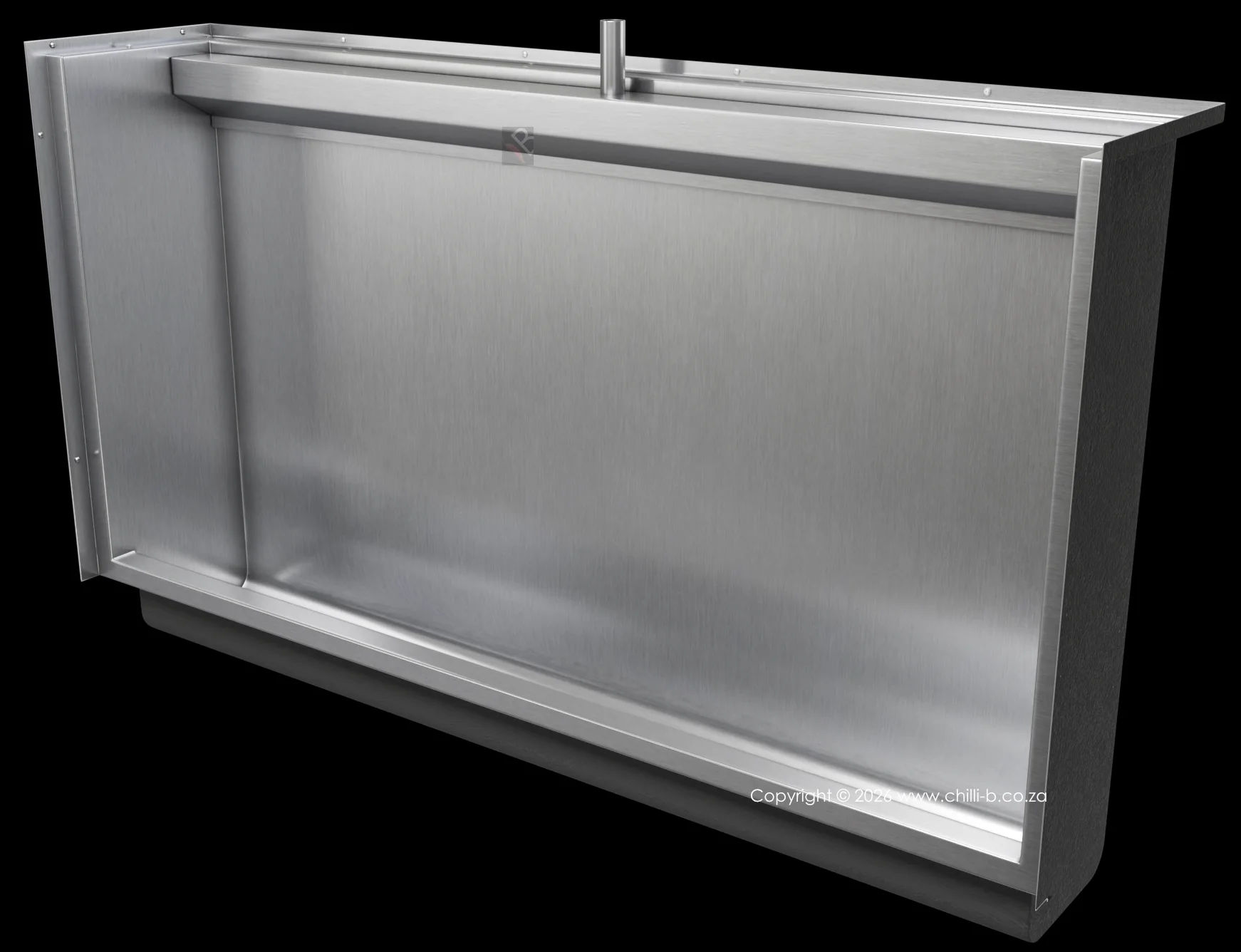

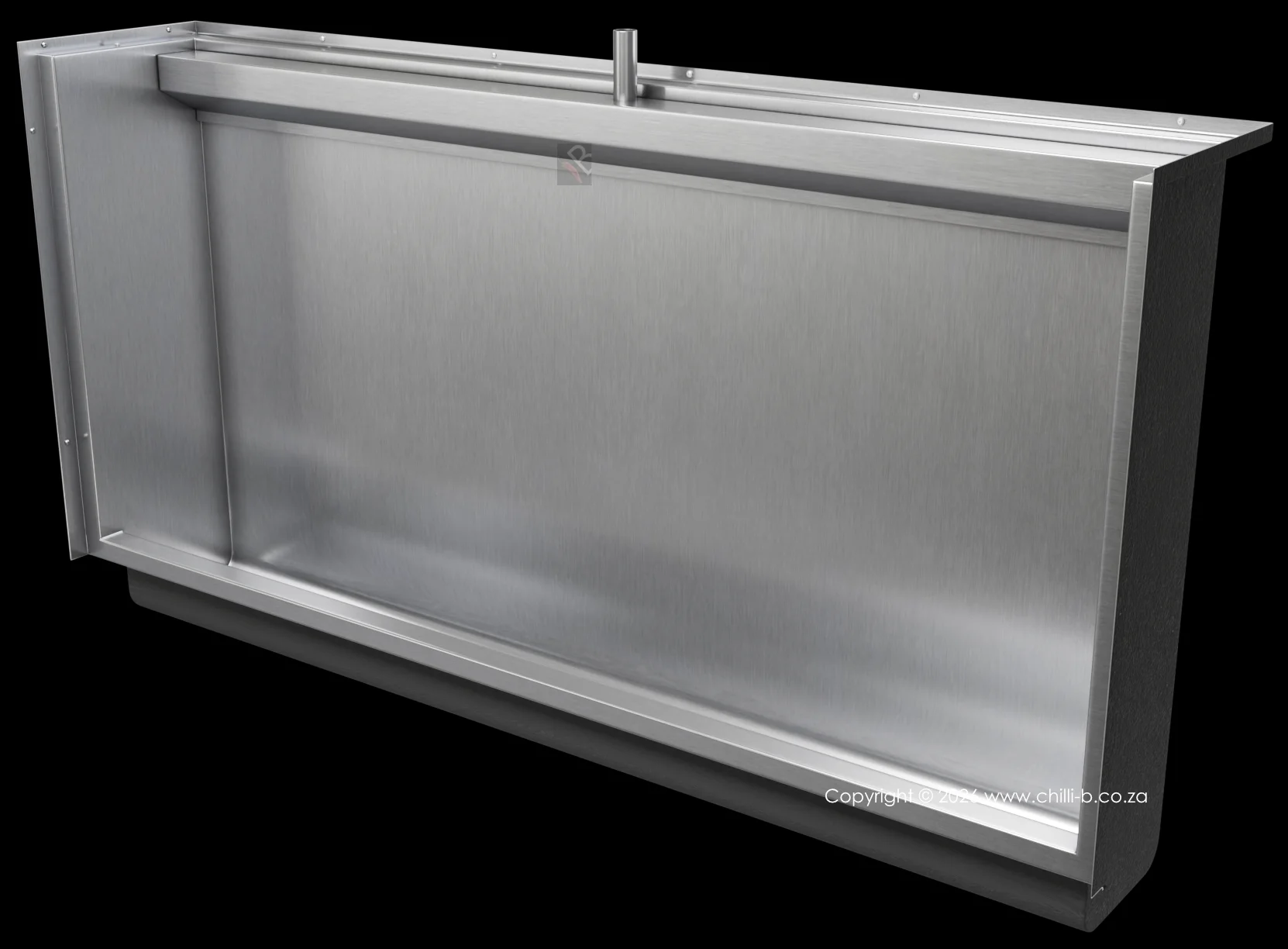

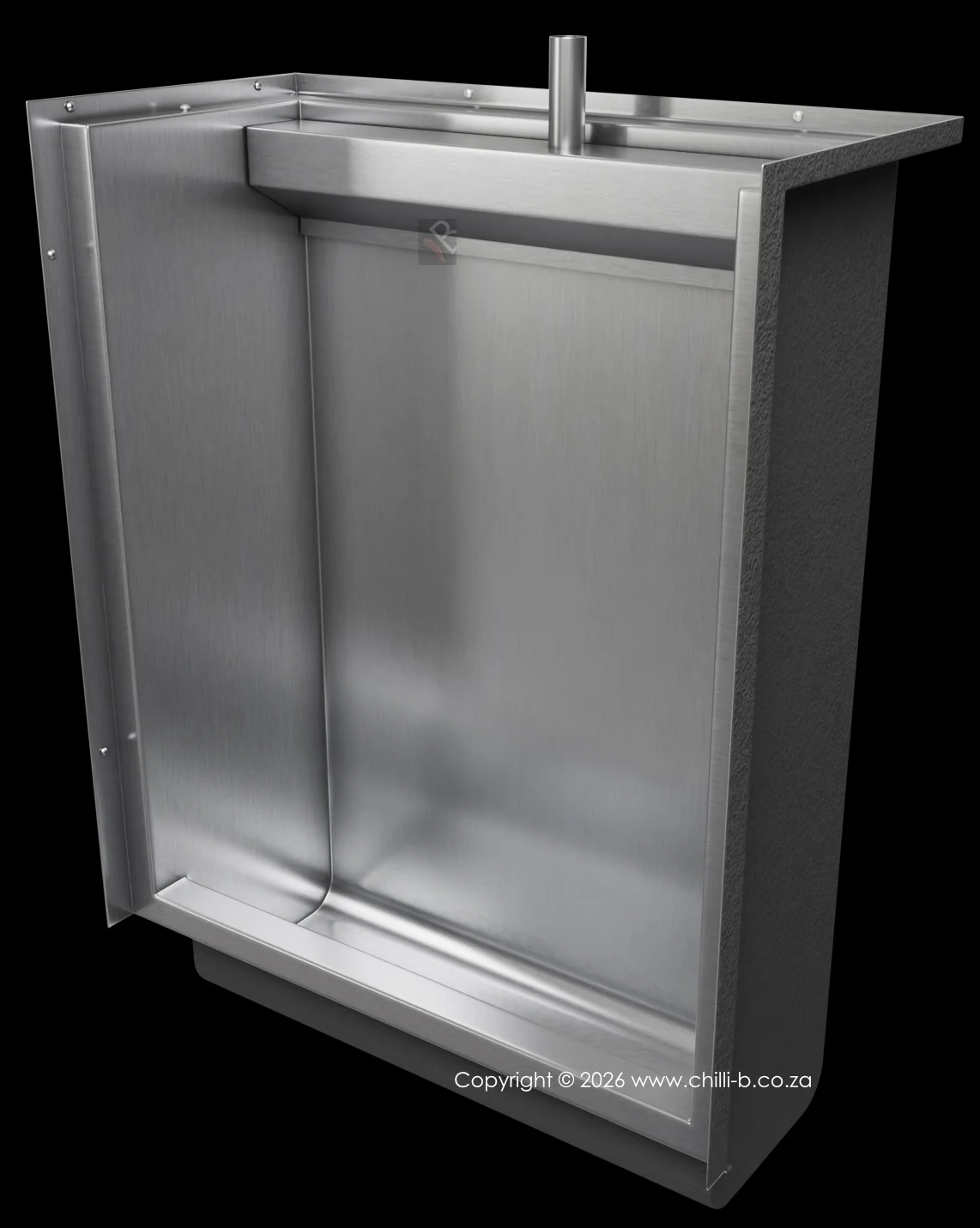

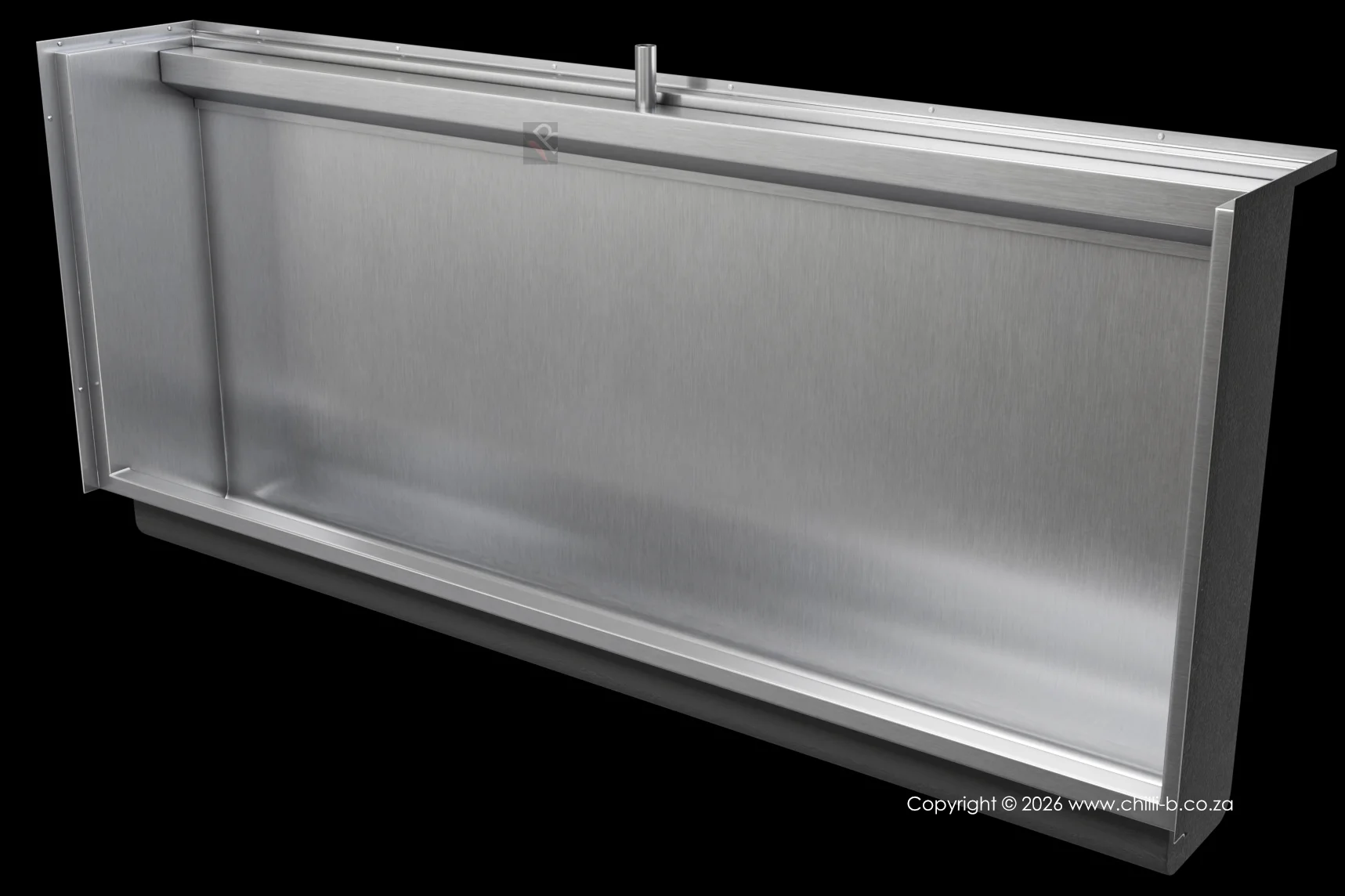

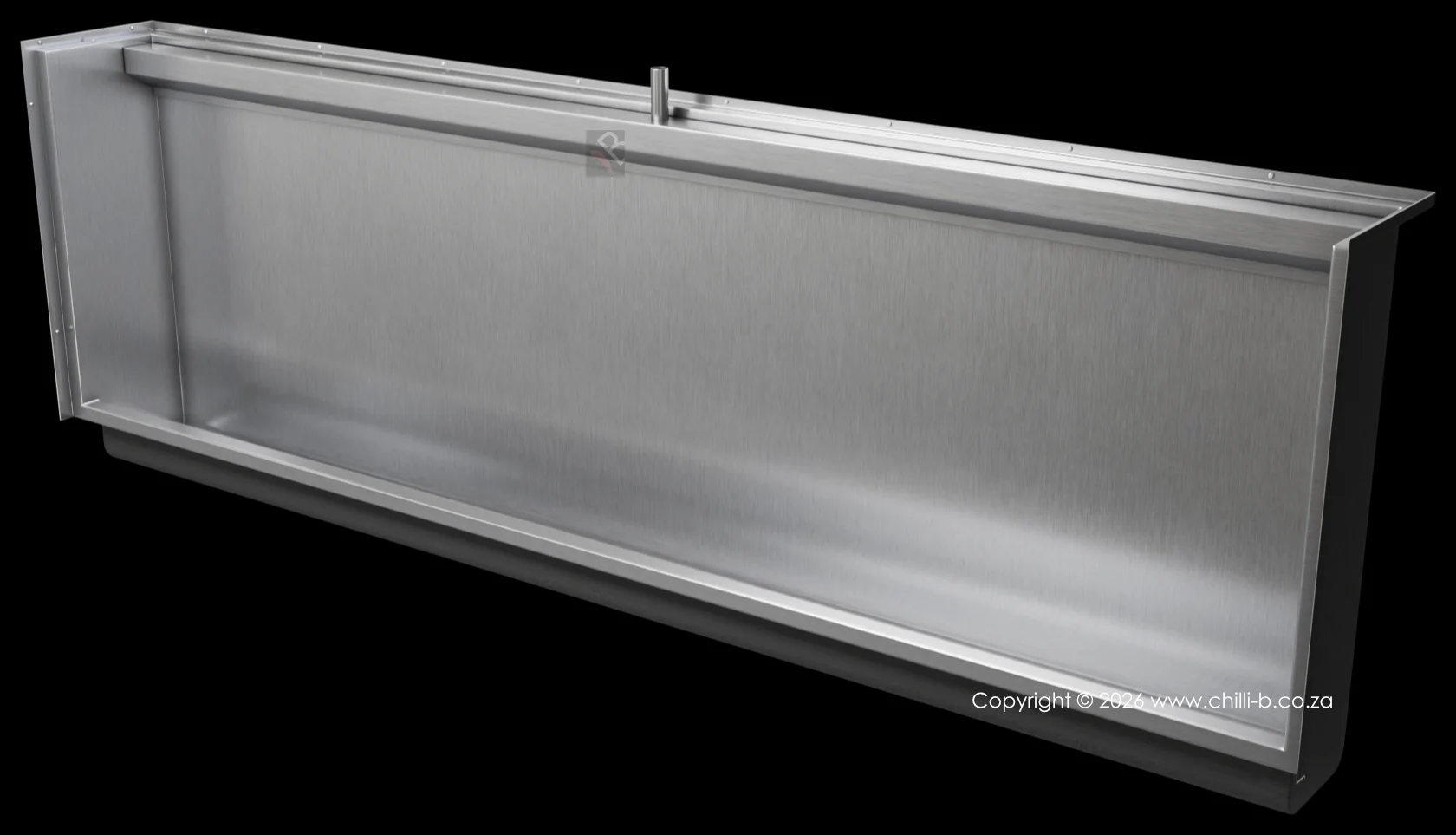

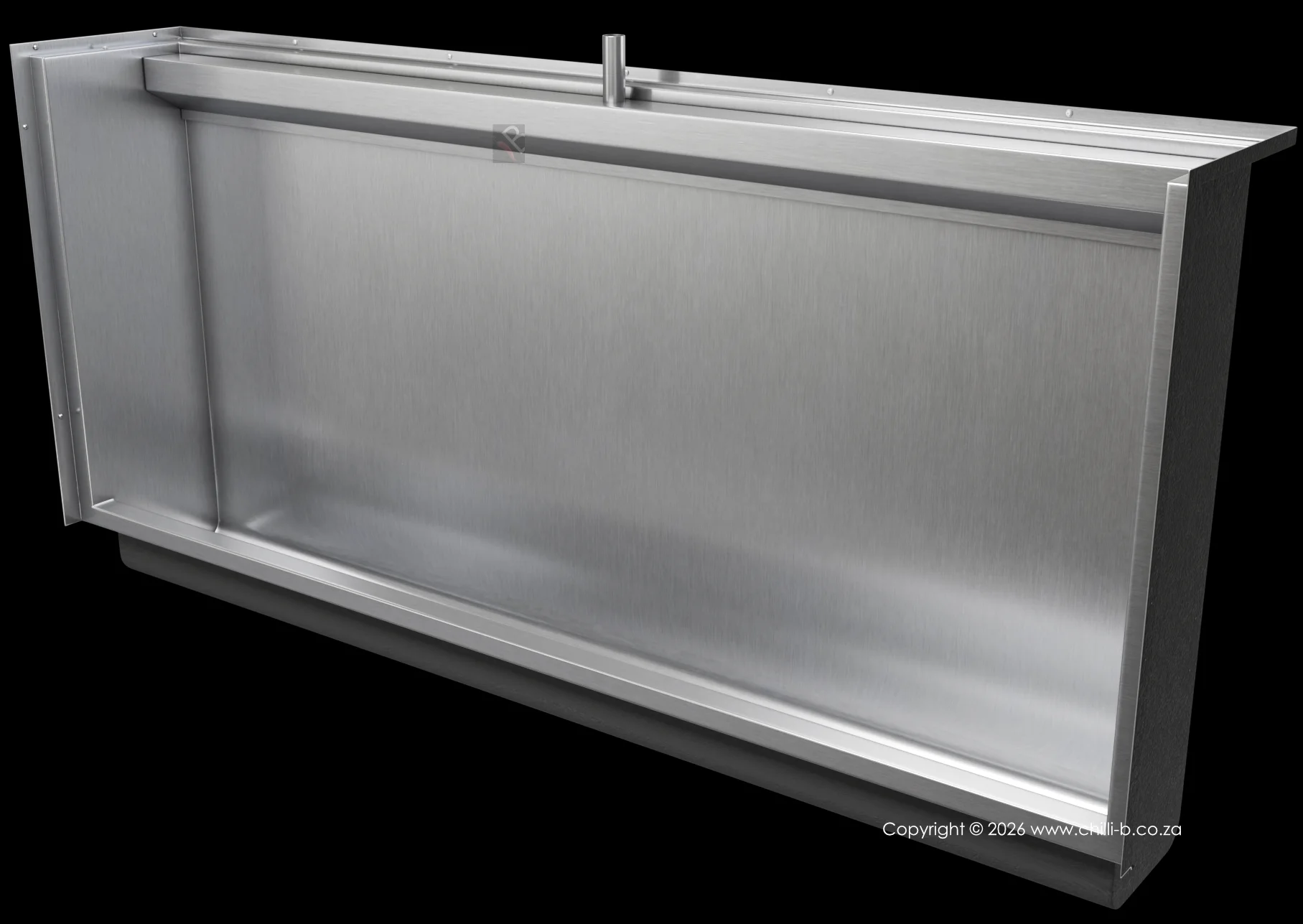

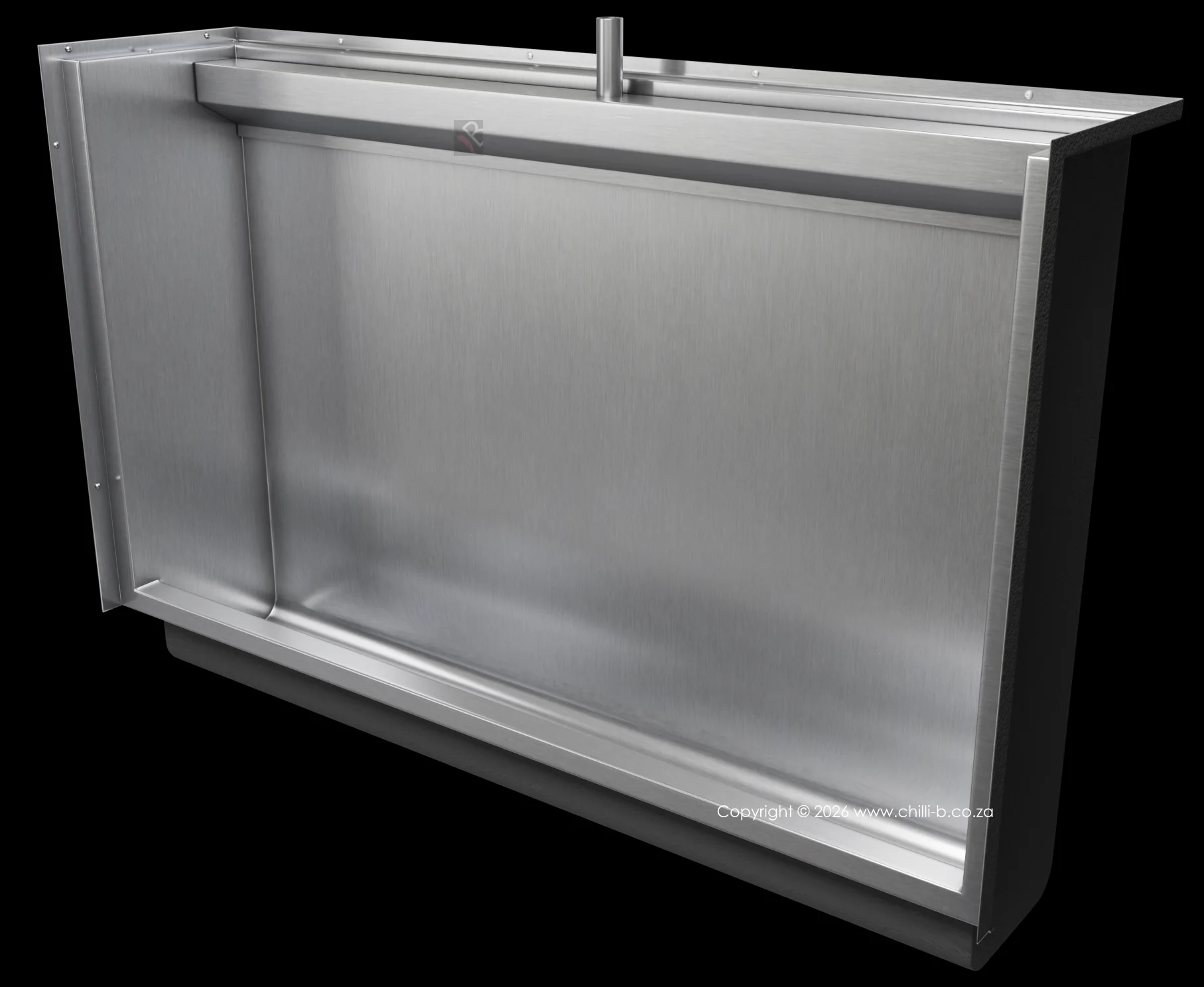

Flat back stainless steel school urinal (Franke Model TU101) -wall mounted trough urinal, variable lengths (see table and product codes). Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 0,9 mm gauge. Urinal to be supplied with a concealed sparge pipe and a 22 mm inlet with chrome plated conex fitting for connecting to the high level cistern or Walcro 550 URV urinal flush valve. Outlet to be situated on the left or right… (please specify) of the urinal with a recess for 40 mm chrome plated waste outlet (to be supplied). Urinal to include a tiling key to sides and rear walls. The back to be fully sound deadened with vermin proof bitumastic material.

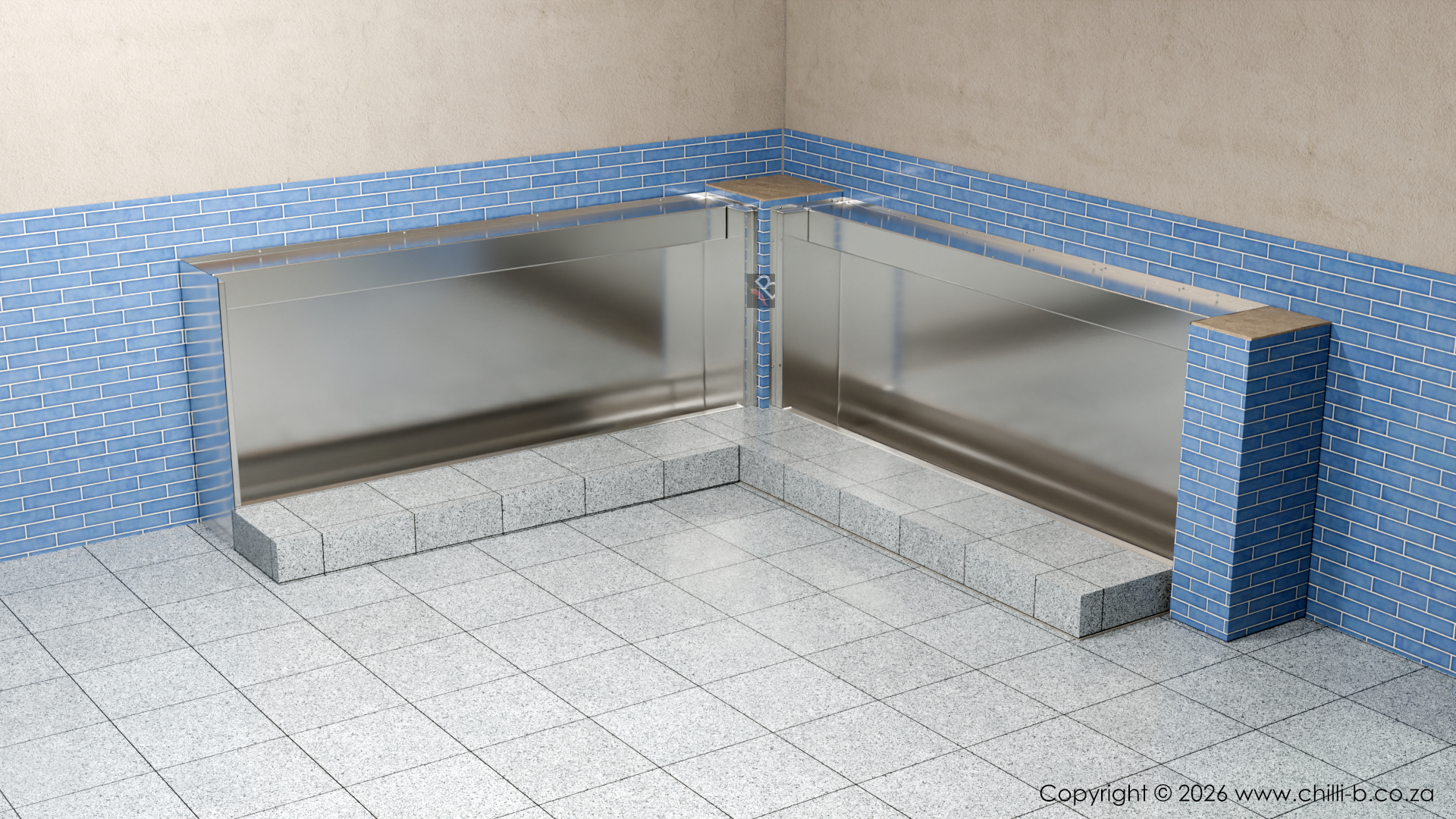

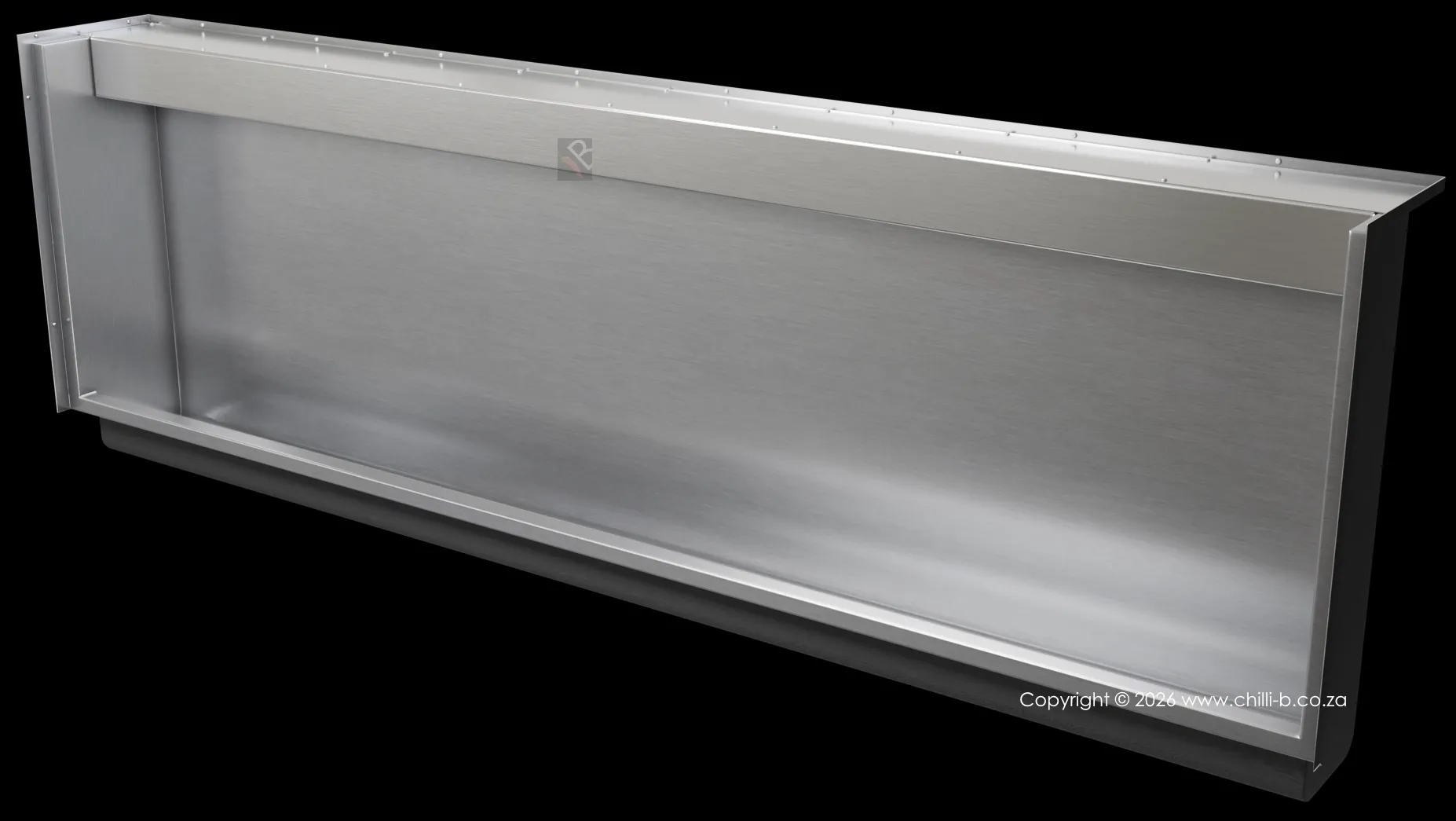

TU102 (Auto flush) flat back wall mounted urinal:

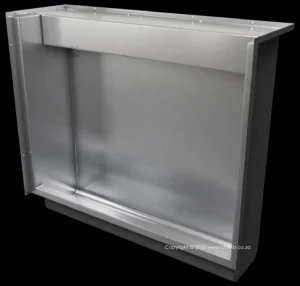

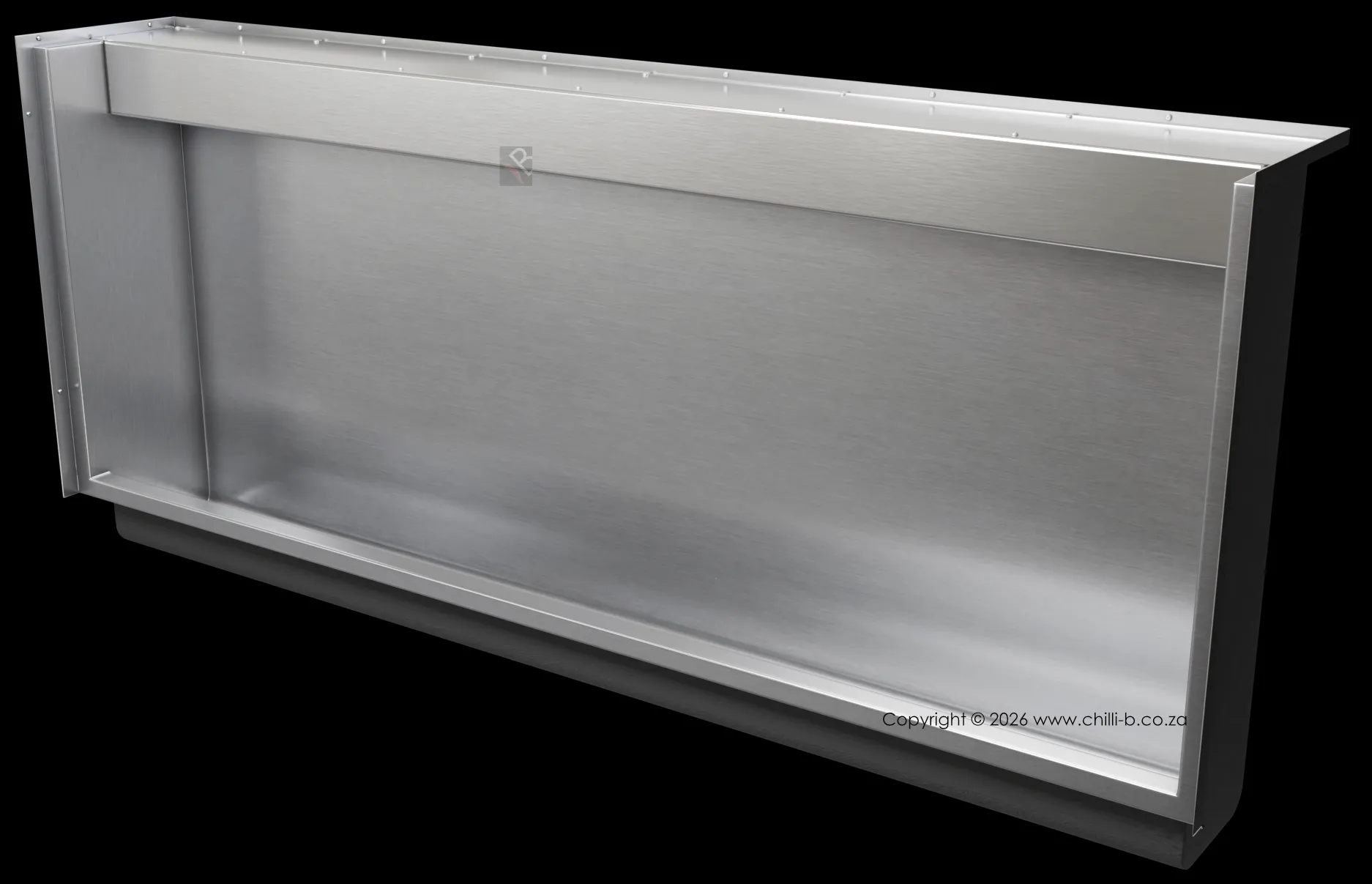

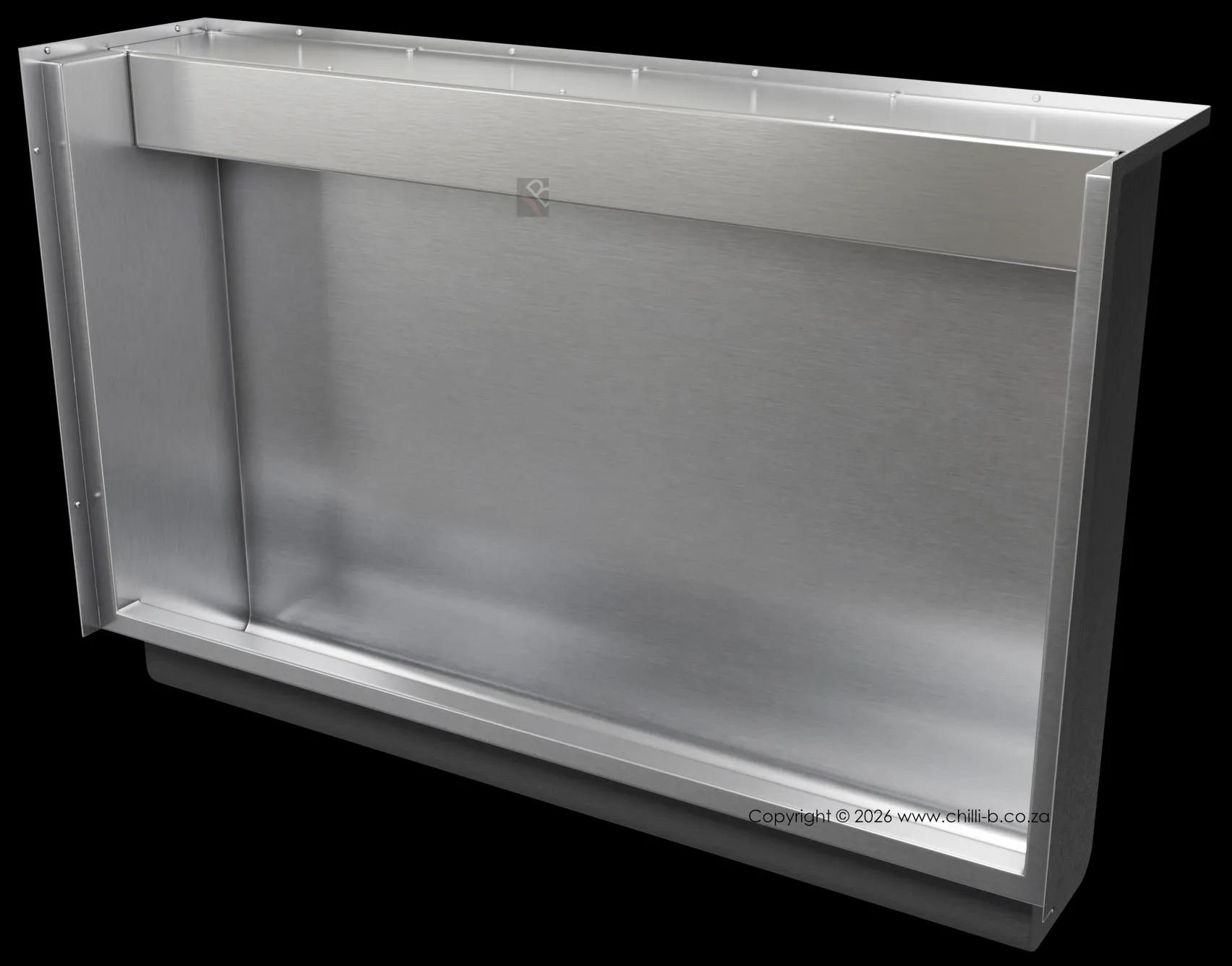

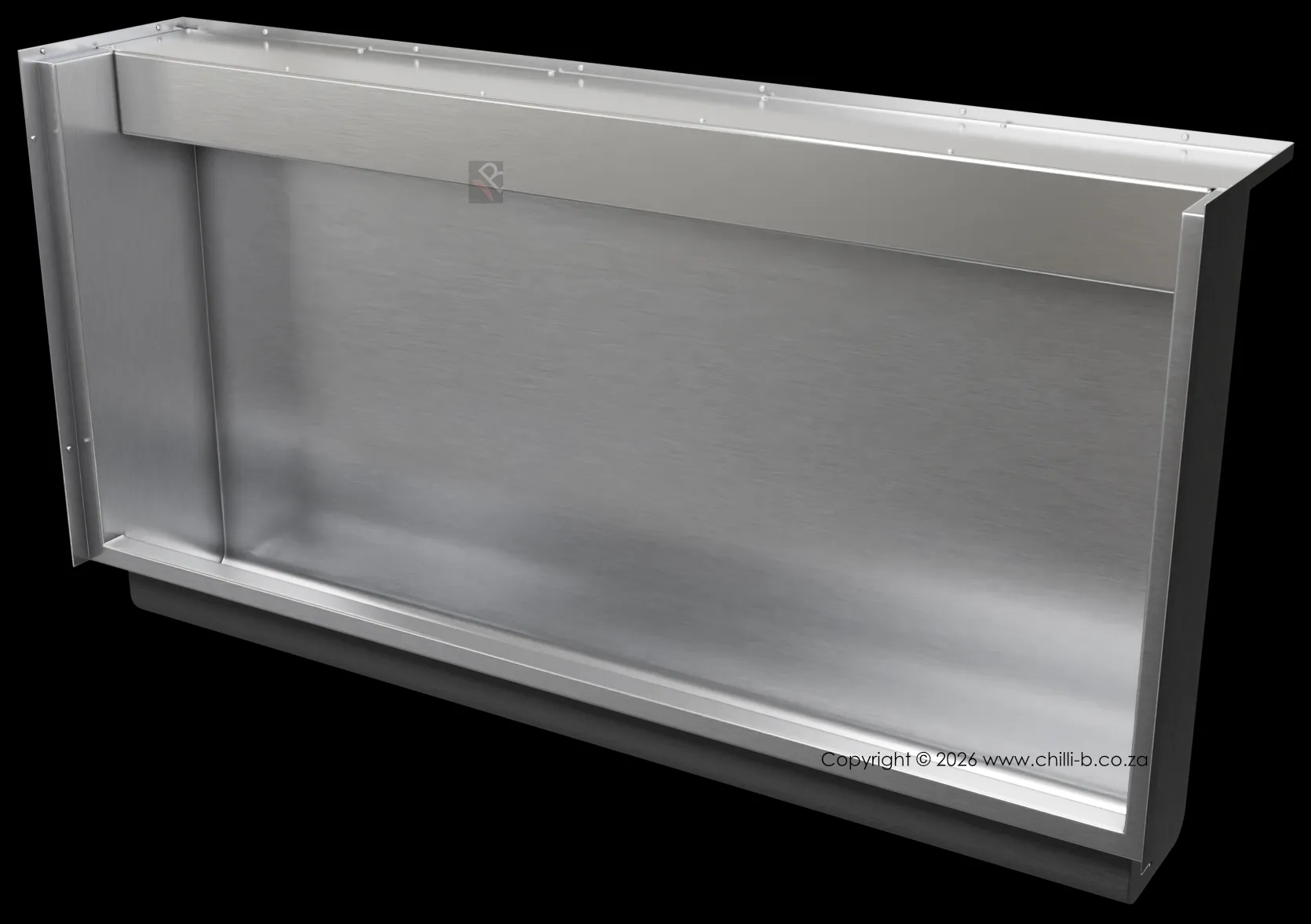

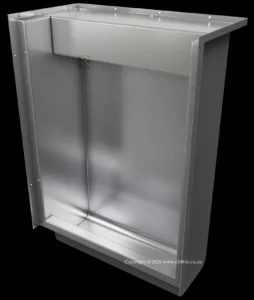

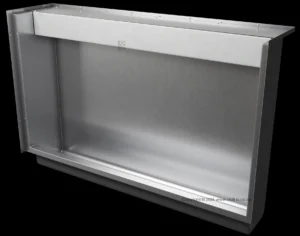

Flat back stainless steel school urinal (Franke Model TU102), variable length (see table and product codes). Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 0,9 mm gauge. Urinal to be supplied with built- in tipping tank and a 12 mm adjustable drip cock (inlet) which controls the automatic flushing of the urinal at regular intervals. Outlet to be situated on the left or right …(please specify when requesting a quote) of the urinal with a recess for a 40 mm chrome plated waste outlet (to be supplied). Urinal to include a tiling key to sides and rear walls. The back to be fully sound deadened with vermin proof bitumastic material. This unit does not require a flush valve like the TU101 model.
Features:
- Manufactured from Grade 304 (18/10) Stainless Steel
- Back of urinal fully sound deadened
- Sides and top complete with tiling key.
- For use with flush valve or high level cistern
- Concealed sparge pipe
- Free standing ends where end plate is exposed
- Left or right outlets (provision for 40 mm waste outlet)
- Standard lengths of 610 to 1830 mm
- Non standard sizes available on request.
| Order code | Product code | Dimensions | Outlet | No of inlets |
|---|---|---|---|---|
| TU101-610L | 334452 | 610 mm | Left hand | 1 |
| TU101-610R | 334370 | 610 mm | Right hand | 1 |
| TU101-915L | 334458 | 915 mm | Left hand | 1 |
| TU101-915R | 334371 | 915 mm | Right hand | 1 |
| TU101-1200L | 334465 | 1220 mm | Left hand | 1 |
| TU101-1220R | 334372 | 1220 mm | Right hand | 1 |
| TU101-1525L | 334472 | 1525 mm | Left hand | 1 |
| TU101-1525R | 334373 | 1525 mm | Right hand | 1 |
| TU101-1830L | 334478 | 1830 mm | Left hand | 1 |
| TU101-1830R | 334374 | 1830 mm | Right hand | 1 |
| Order code | Product code | Dimensions | Outlet | No of inlets |
|---|---|---|---|---|
| TU102-610L | 334482 | 640 mm | Left hand | 1 |
| TU102-610R | 334380 | 640 mm | Right hand | 1 |
| TU102-915L | 334486 | 915 mm | Left hand | 1 |
| TU102-915R | 334381 | 915 mm | Right hand | 1 |
| TU102-1200L | 334490 | 1220 mm | Left hand | 1 |
| TU102-1220R | 334382 | 1220 mm | Right hand | 1 |
| TU102-1525L | 334494 | 1525 mm | Left hand | 1 |
| TU102-1525R | 334383 | 1525 mm | Right hand | 1 |
| TU102-1830L | 334498 | 1830 mm | Left hand | 1 |
| TU102-1830R | 334384 | 1830 mm | Right hand | 1 |
Please se table above for the lengths that are available.
Recommended flush valve for TU101 school urinal
Flush valve for manual trough urinals.
Walcro 550URV exposed 20 mm BSP urinal flush valve. Made from DZR brass and designed for single bowl and trough urinals. Recommended with trough urinals. The number of flush valves per trough urinal will depend on the length of the urinal. So more than one unit might be required for proper flushing. Pressure range: 30 kPa – 600 kPa. Can be used with either with the UR15TP flush pipe for top entry or the 103/6 flush pipe with spreader.
