Hands-free washbasin combo’s

C-KV knee operated demand valve with basin

The heavy duty C-KV knee operated valve paired with a small stainless steel basin. Optional deck mounted swivel spout. Knee valve has a stainless steel cartridge with 4.5mm thick stainless steel bracket. The front pedal is also made from stainless steel and cannot be removed. The knee valve and bracket is specifically designed to go with the CB-WB400 hand wash basin. Aerators and flow limiters can be installed on the spout to reduce splashing and improve hygiene. The demand valve does not mix hot and cold water, so the supply is cold water only or pre-mixed water only. If hot water is required, a mechanical mixing valve (CO-El-X60 or LX-TV-15) must be used (all optional). basin dimensions 400x295x110mm.

Hands free basin complete setup

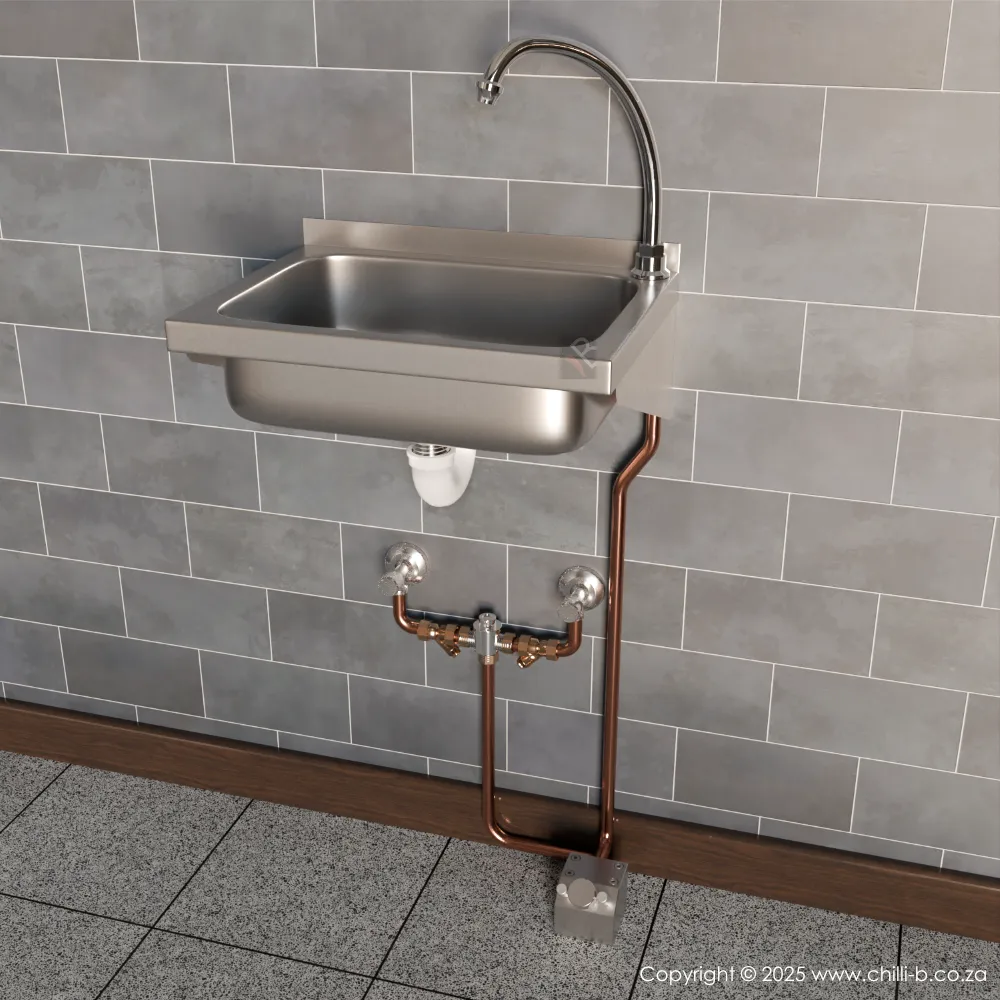

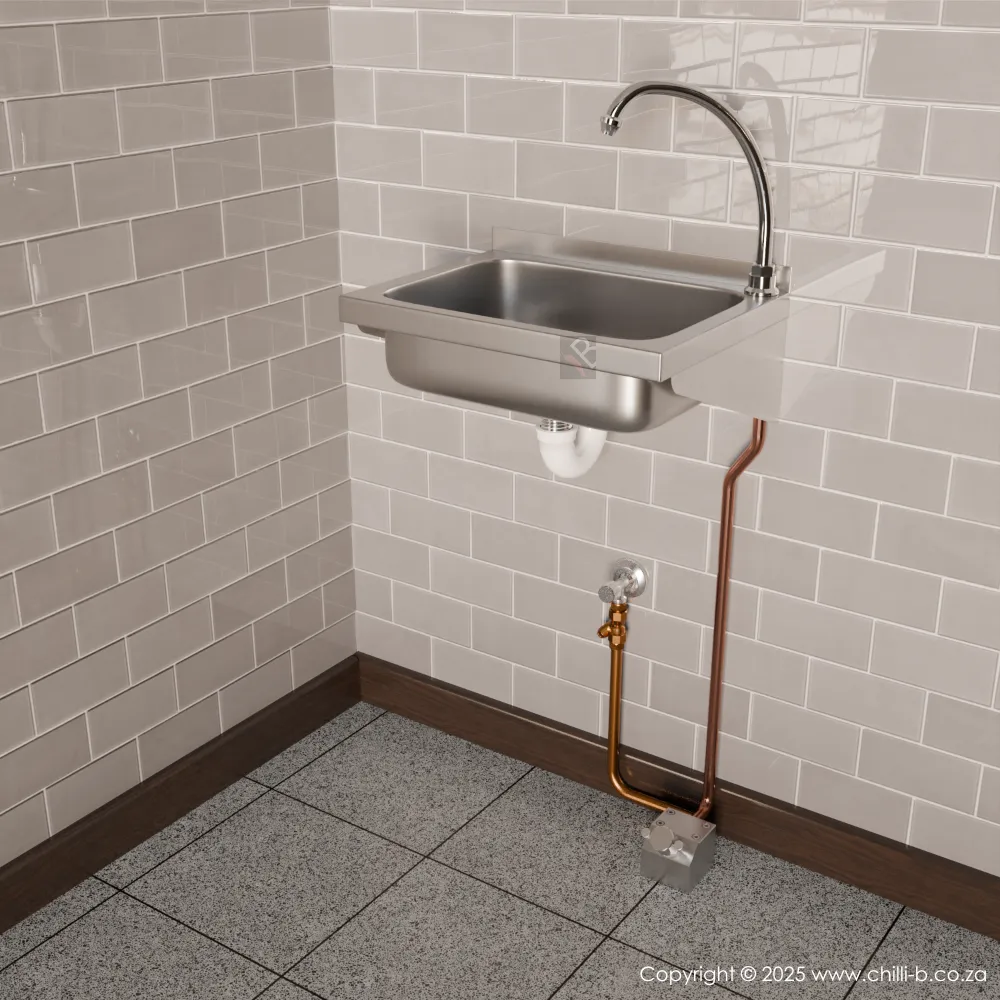

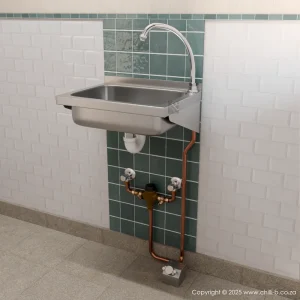

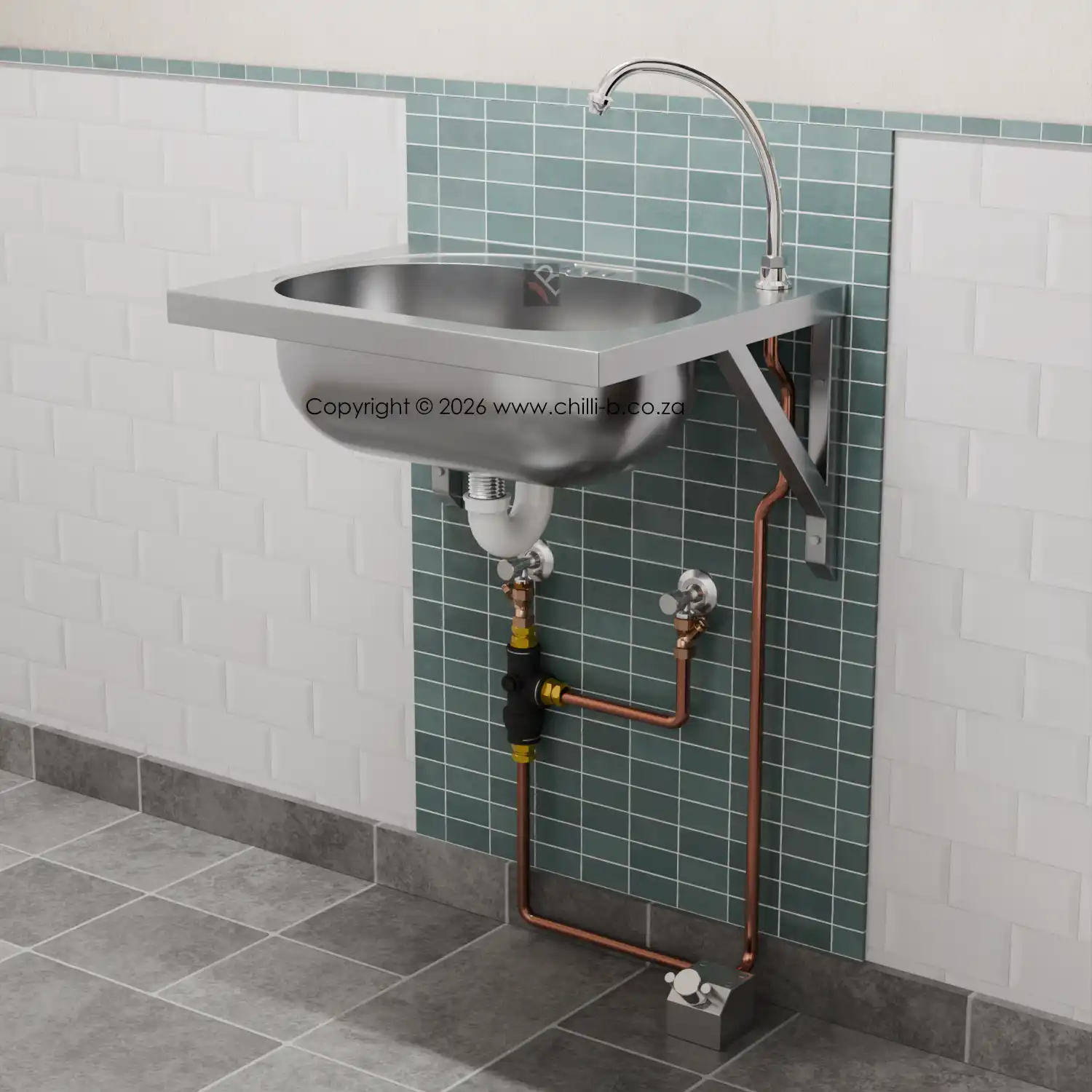

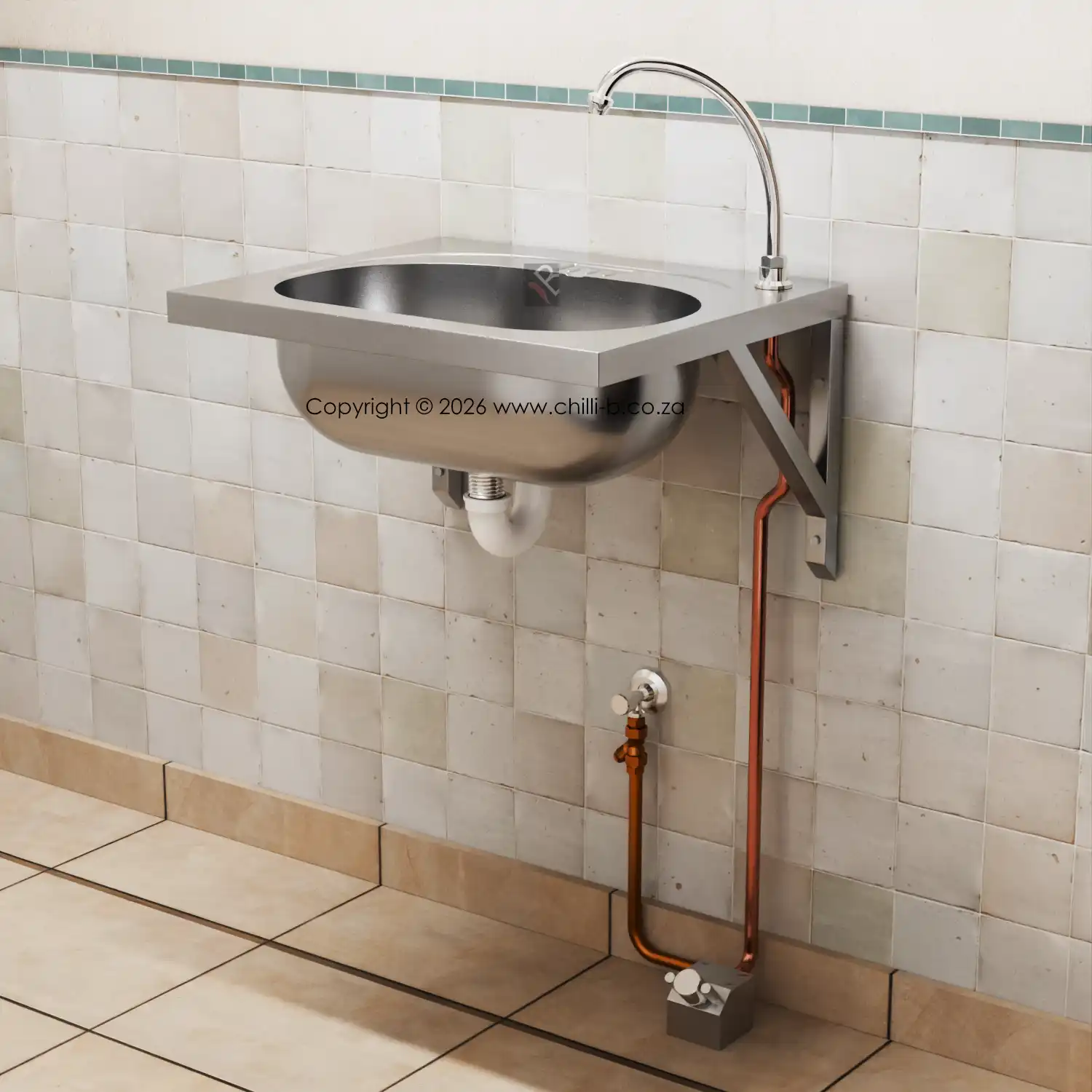

A complete setup for hands free washing, suitable for high traffic areas such as factories, food processing plants, laboratories, doctors rooms, clinics and more. Both these setups allow mechanical mixing of hot and cold water before it reaches the foot operated valve. The Boxed Foot Valve and the Calderoni foot valve do not mix hot and cold water. The samples bellow show a mechanical mixer but a thermostatic mixer can also be installed. A thermostatic mixer ensures that the temperature of the mixed water will never scald or burn the users hands.

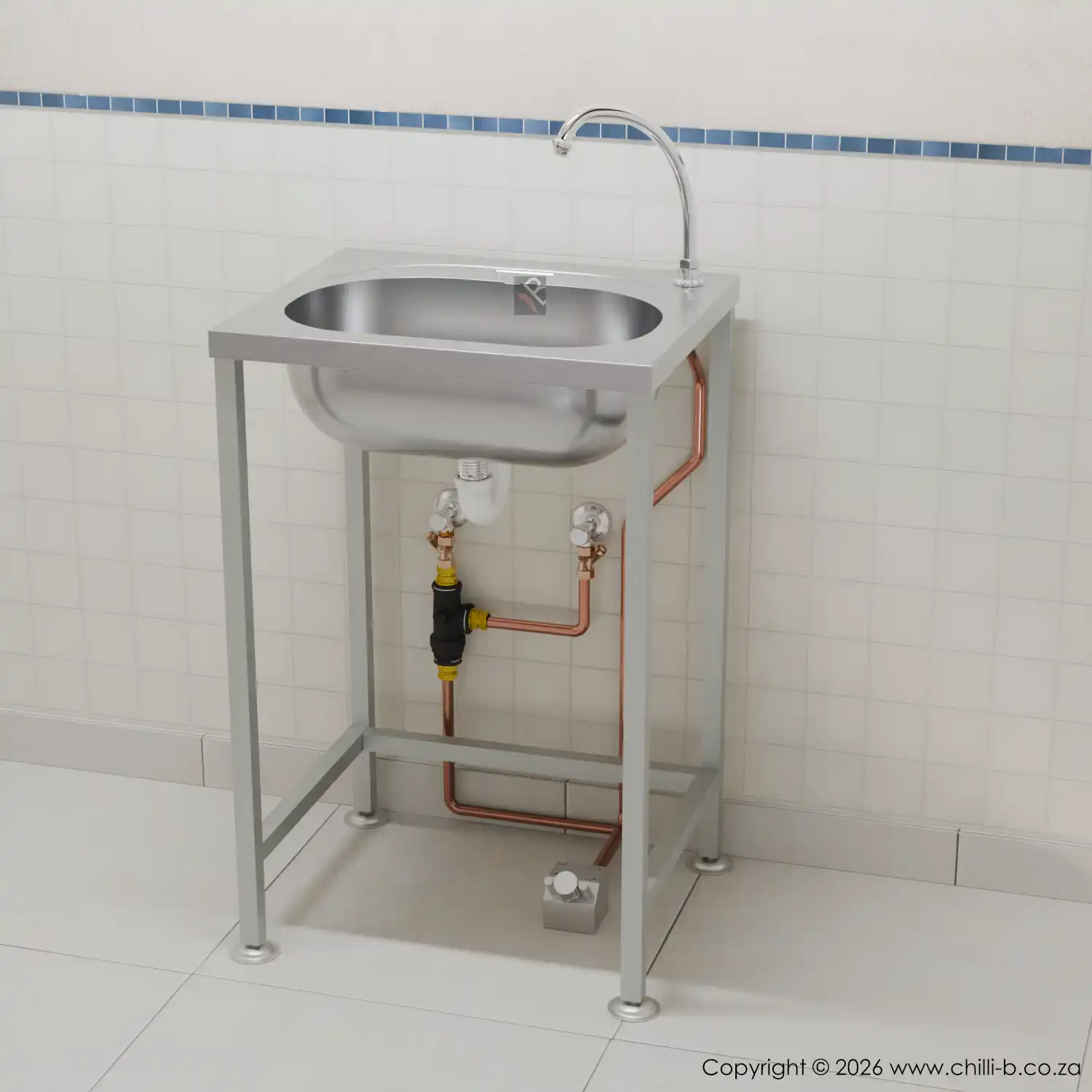

Freestanding foot-operated hands-free basin

Stainless steel hands free foot operated washbasin. Supplied complete with water spout positioned in rear right-hand corner or to the left and with a 40 mm waste outlet. Fitted with an industrial metered valve. The foot valve is activated by pressing the lever lightly. The water will run for 8-15 seconds. Note that the lever must not be held down for the water to flow. The mechanism significantly reduces wear and tear. Spare valves cartridges are available. The valve supplies cold water or pre-mixed warm water only. Mixing can be done with either a mechanical hot/cold mixer (CO-EL-X60) or a thermostatic valve (W-15/3, LX-TV-22CXC or CA-521400). This basin is ideal for the light traffic installations.

• Dimensions: 880 x 520 x 420 mm.
• Bowl dimensions: 440 x 270 x 170 mm



The foot valve can be set to the left, right or center, depending on user preference.

Wall mount knee operated hands-free washbasin

Heavy duty stainless steel hands-free washbasin with knee operated tap. We include the water spout, placed in the rear right-hand corner and a 32 mm waste outlet. Note: The metered valve and the pipework linking the water spout to the knee operated front panel is supplied with the washbasin. The valve does not mix hot and cold water, so the supply is cold water only. Using hot water requires either a mechanical mixing valve (CO-El-X60 or SL-MIX) or a thermostatic mixing valve (W-15/3). Wall-mounted by fitting a top joggle strip under the upstand return and by screw fixing through the integral rear brackets. Screws and plugs are not included. This basin is ideal for the food industry, hospitals, clinics and doctors surgery rooms.

Download diagram …

Light duty Wall mount knee operated hands-free washbasin

Below are two light-duty commercial hands-free basins and is ideal for washrooms and laboratory installations. The basins come complete with deck mounted spout, metered valve and wall-mounted basins. Spare valves and spouts are available on request. The bowl of the basin is made from 0.8mm grade 430 stainless steel while the frame is grade 304 stainless steel. C-HFB-S-BTN comes with an imported Italian hot and cold water mixing valve.

Essential accessories for the hands-free basin systems
